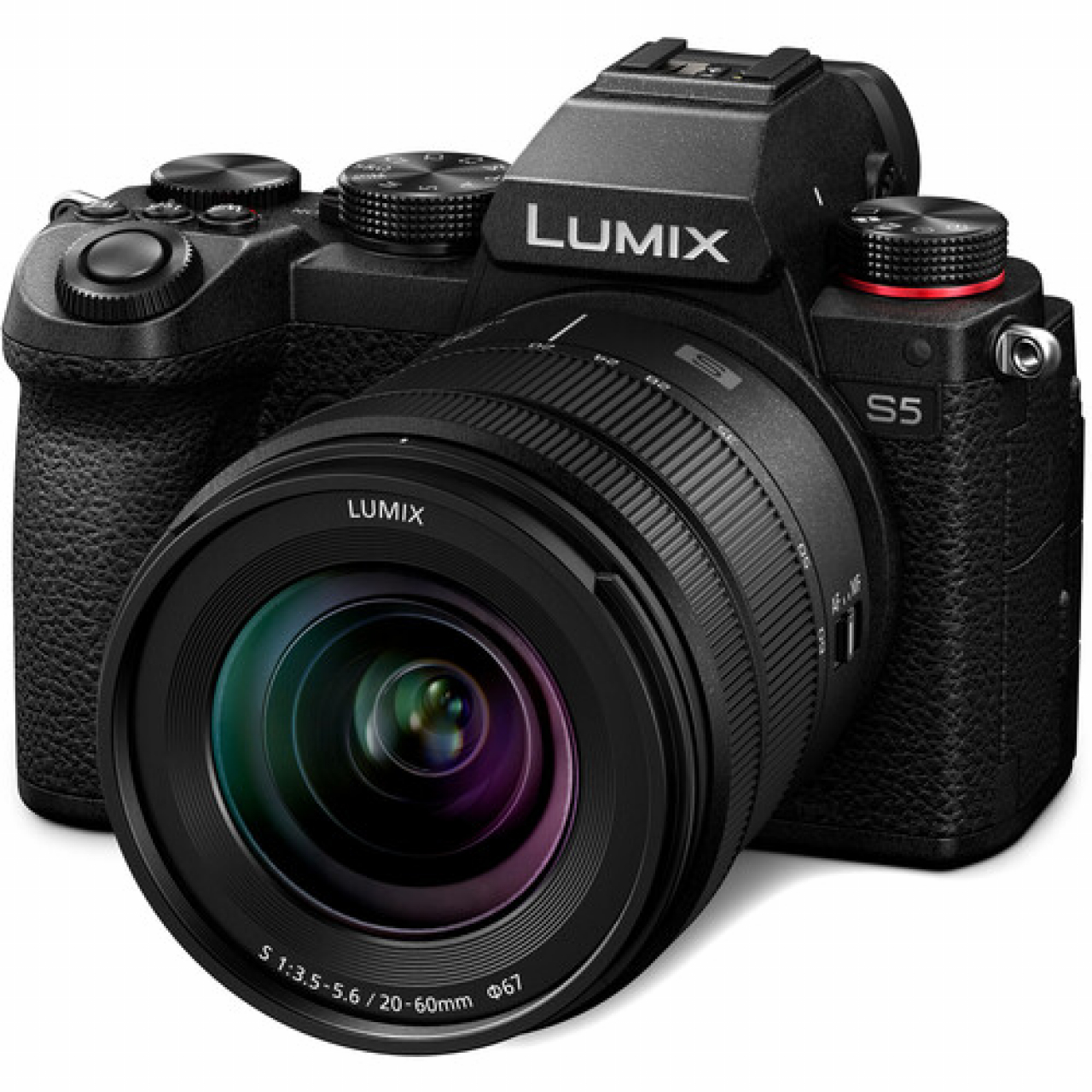

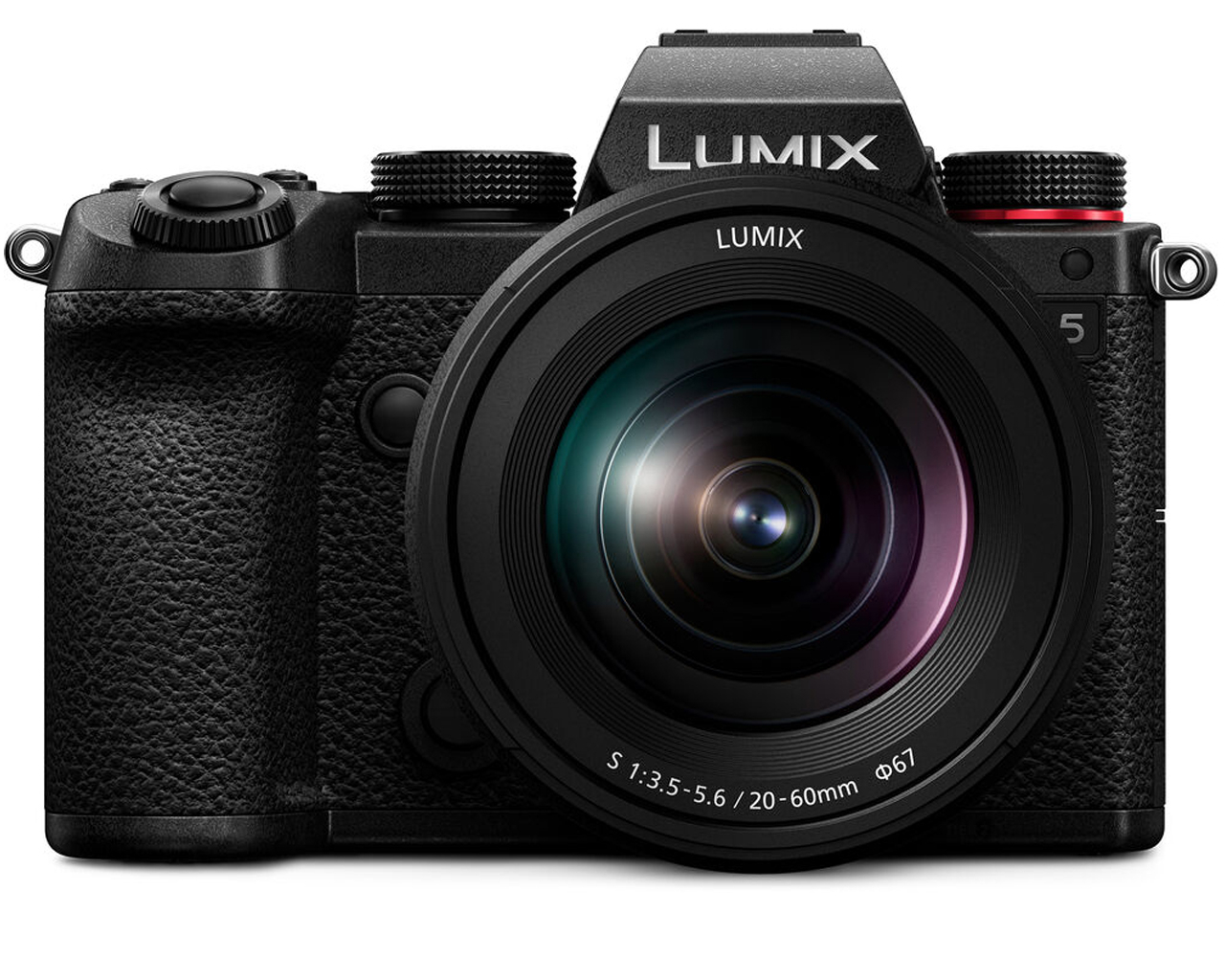

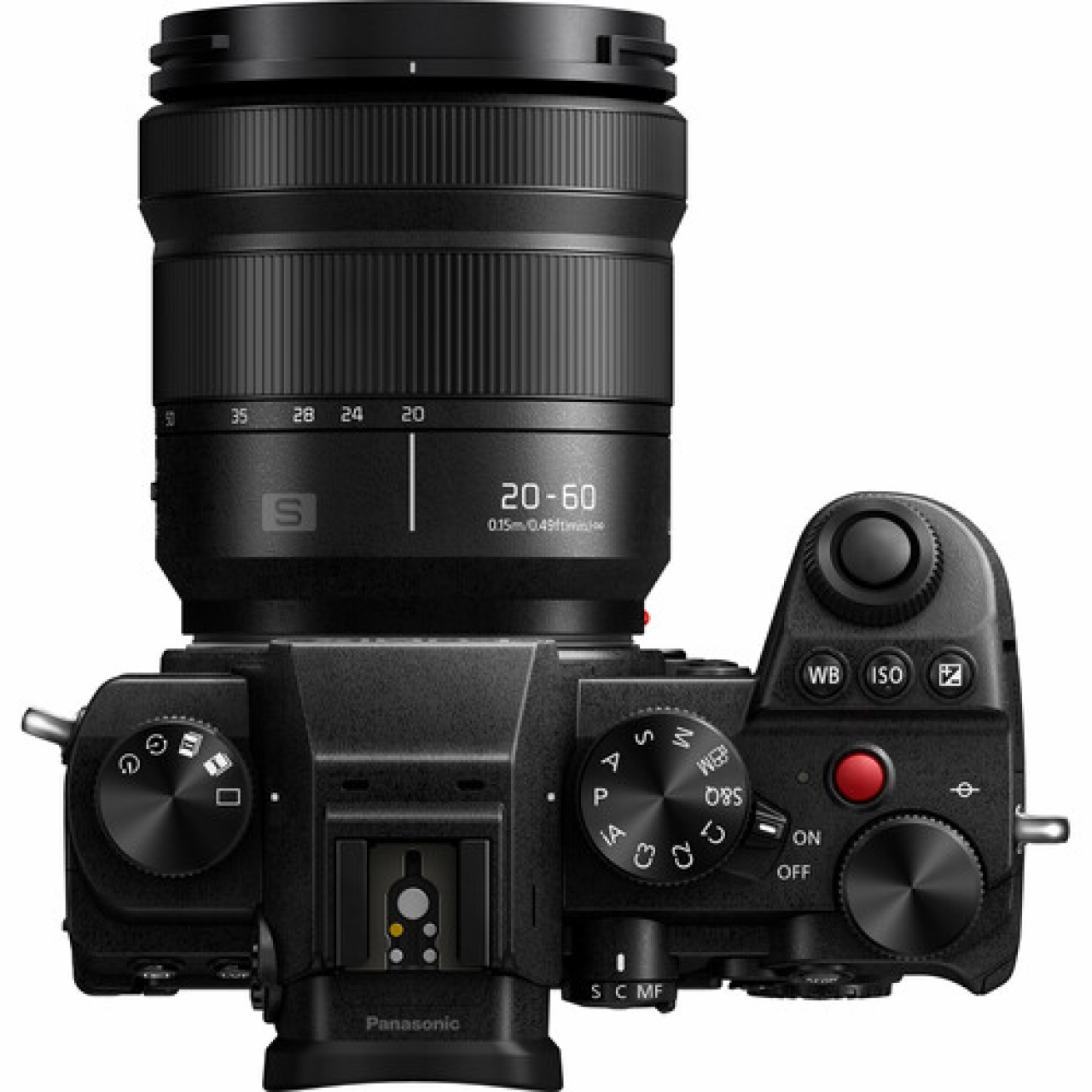

Panasonic Lumix S5 + ob. 20-60mm F3.5/5.6 L-Mount
Well rounded, light and stylish, the Panasonic Lumix DC-S5 combines capable video and photo capabilities with a portable body design. Equipped with a 24.2MP full-frame CMOS sensor, the S5 stands out with 10-bit UHD 4K60 internal recording, Dual Native ISO, and a wide dynamic range of 14+ stops. In addition to video, it caters to a versatile range of still applications with 7fps continuous shooting, ISO 100-51200 native range, and even a 96MP high-resolution shooting mode. Whether you're working with photos or videos, the S5 maintains a fast and accurate 225-area DFD autofocus system with refined subject tracking, as well as 5-axis sensor-shift image stabilization for minimize the appearance of camera shake.
In terms of physical design, the S5 borrows elements from the larger S1 camera series, but has a smaller footprint and lighter profile for better portability. The S5 incorporates a 2.36m OLED electronic viewfinder and a 3.0 "1.84m free angle LCD touchscreen and has built-in Wi-Fi and Bluetooth for wireless connectivity. Two card slots are also featured. SD memory. for flexible file storage and the body also has a splash and dust resistant design for working in harsh conditions.
24.2MP full frame CMOS sensor and Venus Engine
Featuring a 24.2MP full-frame CMOS sensor and an updated Venus Engine, the S5 balances high sensitivity, wide dynamic range and speed. The sensor-processor combination allows for a useful ISO 100-51200 range, which can be extended to ISO 50-204800, to suit work in a variety of lighting conditions. For working with fast-moving subjects, the S5 also allows you to shoot at full resolution at up to 7fps with AF-S or 6fps with AF-C, or up to an impressive 60fps continuous shooting when using 6K modes or 4K PHOTO.
UHD 4K HDR video recording
In addition to still images, the S5 also offers highly capable video recording resources, including UHD 4K30p full frame internal recording with 4: 2: 2 10-bit color and UHD 4K60p recording using APS-C and 4 sensor area : 2: 0 10-bit color. Full HD 60fps recording, as well as 4K 30fps, is also supported in 8-bit color and unlimited recording time. In addition, high-speed recording is possible, up to Full HD at 180 fps, and anamorphic recording is also available.
Borrowing from Panasonic's line of broadcast cameras, Dual Native ISO helps achieve a balanced combination of low noise and high sensitivity to better suit work in a variety of lighting conditions. Two dedicated circuits are provided for each pixel: a Low ISO circuit provides base sensitivity of ISO 100 for normal use, ISO 640 when V-Log is applied, ISO 400 when HLG is applied, and ISO 200 when Cinelike D2 / is applied. V2; a low noise circuit provides base sensitivity of ISO 640 for normal use, ISO 4000 when V-Log is applied; ISO 2500 when HLG is applied and ISO 1250 when Cinelike D2 / V2 is applied.

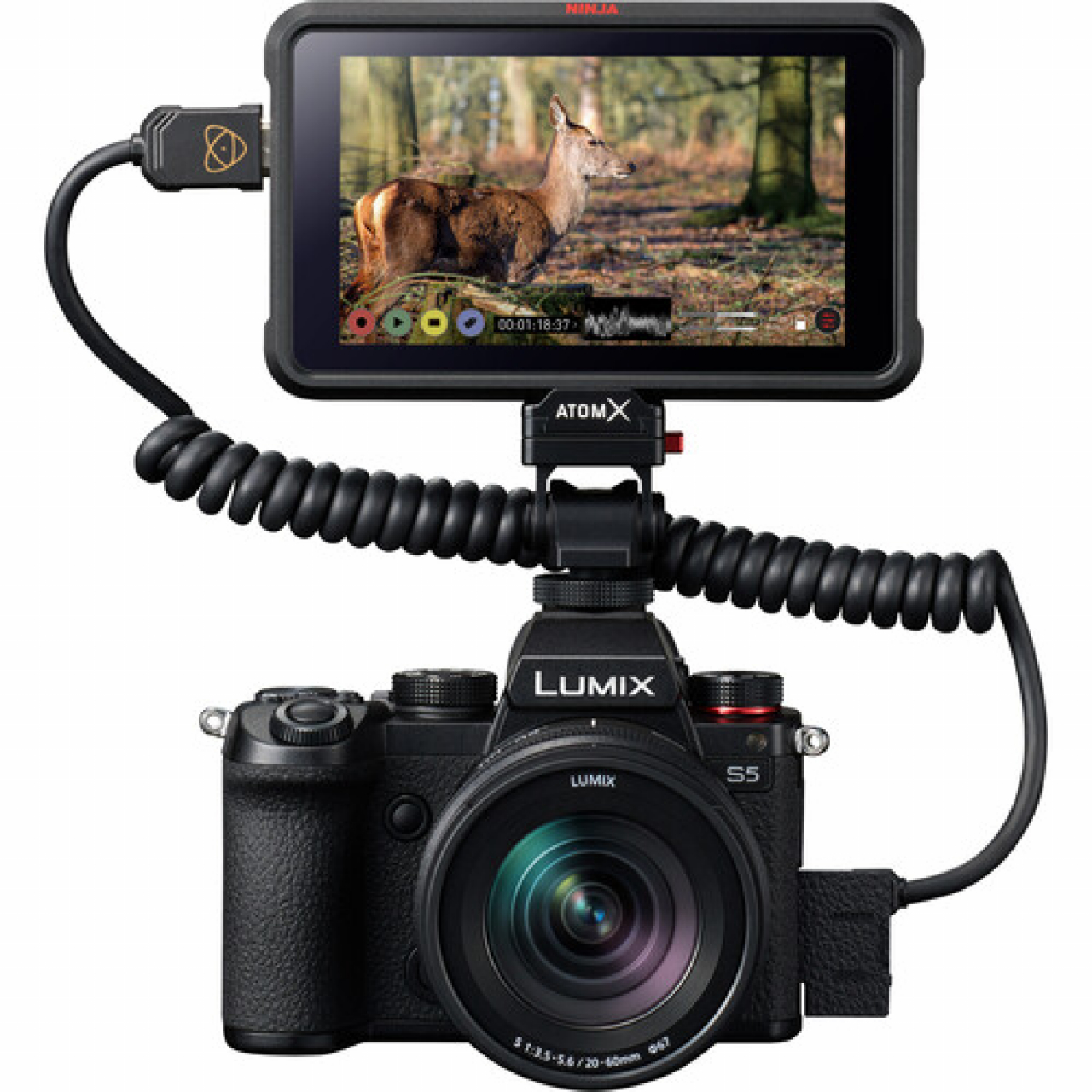

By optimizing the recording for post-production color adjustment, the S5 also features a couple of gamma settings suitable for capturing a wide dynamic range. V-Log was pre-installed on this camera and is used to capture a flat, neutral gamma curve and an equivalent of 14+ stops of dynamic range, making it suitable for grading. Additionally, a High Dynamic Range and Hybrid Log Gamma mode can be used to record more detail in both shaded and highlighted areas of a scene. Additional picture styles are available to provide a more gradual picture, such as Cinelike V2 and Cinelike D2, as well as a built-in LUT to simplify monitoring. Additionally, you can record to an optional external recorder, via the HDMI Type D port, and support for an external microphone and headphones is also available via dedicated 3.5mm jacks.
Body design
Used in conjunction with other members of the L-Mount Alliance, the L Lens Mount is a versatile interface with a 51.6mm mount diameter and 20mm flange distance to work with a wide range of optics.

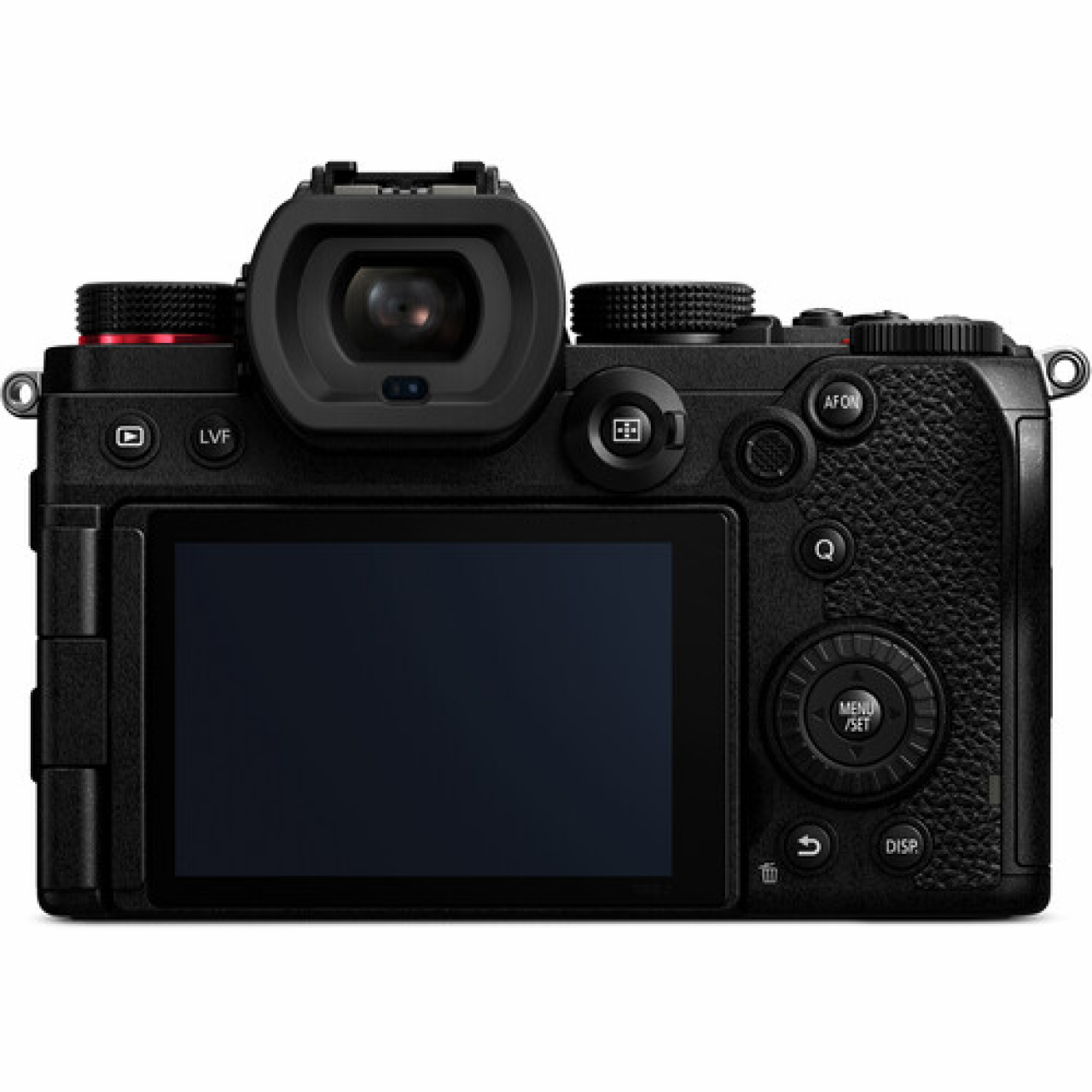

The 2.36m high resolution OLED EVF offers clear 0.74x magnification along with a variable refresh rate of 60fps or 120fps.

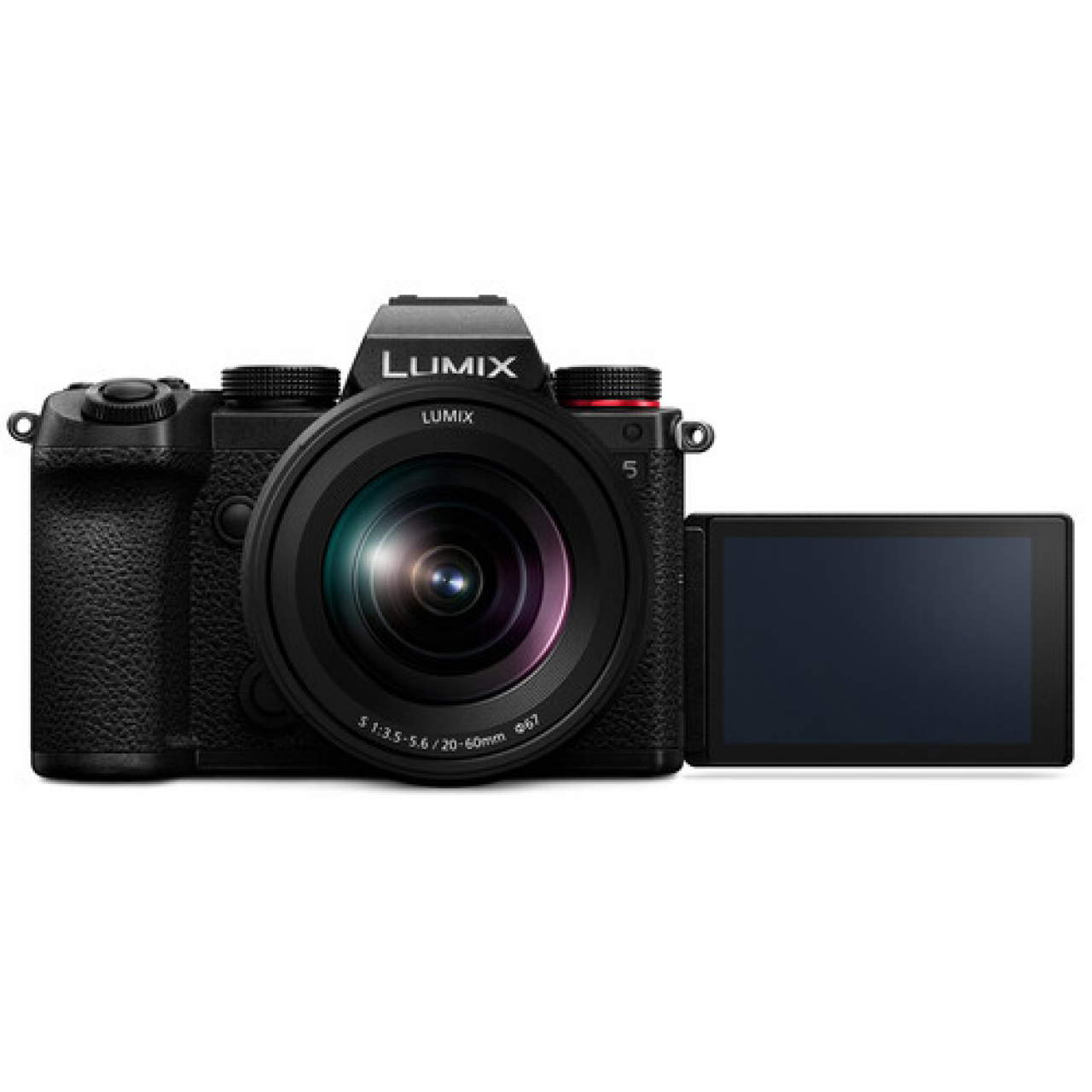

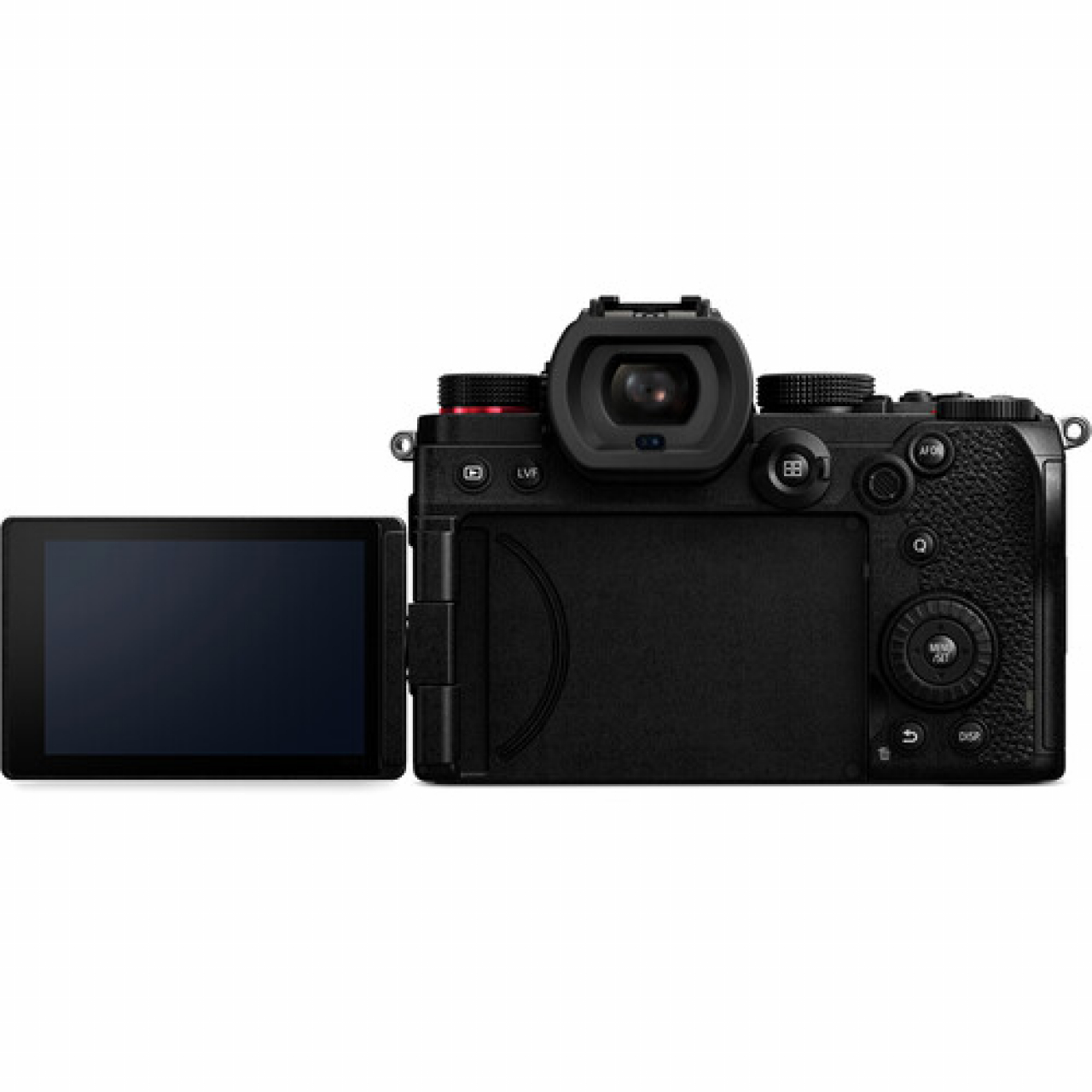

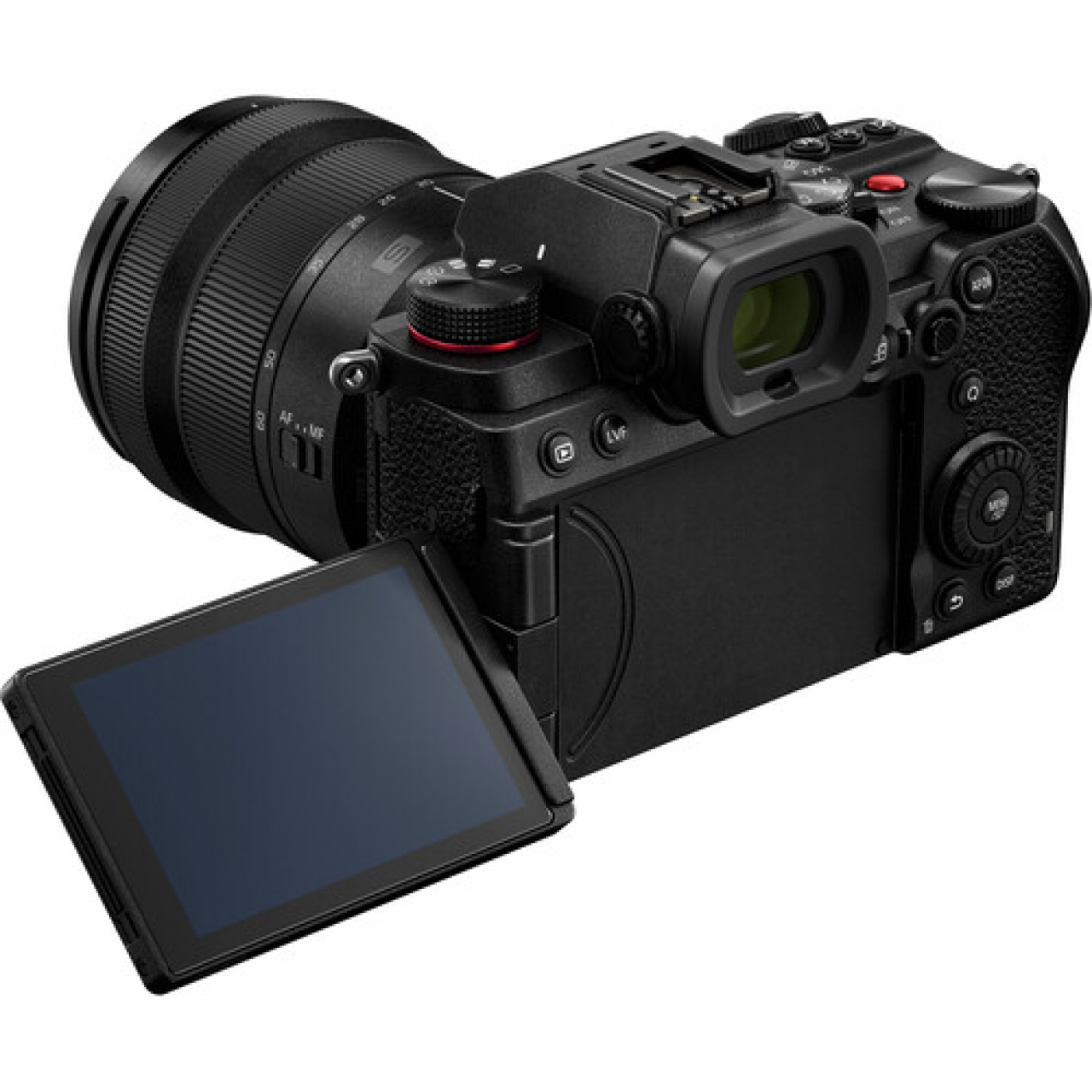

The 3.0 "1.84m rear LCD is a clear and bright medium for live view shooting, playback and menu navigation. The screen features a free-angle design to accommodate working from high angles , low and front, the touchscreen design allows intuitive control of settings.
The construction lasted
Imaging
Leica L lens mount
Full-Frame Camera Format (1x crop factor)
Effective Pixel: 25.28 Megapixel
Effective: 24.2 Megapixels
Maximum resolution 6000 x 4000
Proportions 1: 1, 2: 1, 3: 2, 4: 3, 16: 9, 65:24
CMOS sensor type
Sensor size 35.6 x 23.8mm
Image File Format JPEG, Raw
Bit depth 14 bit
Sensor-Shift, 5-axis image stabilization
Exposure control
ISO sensitivity Auto, 100 to 51200 (extended: 50 to 204800)
Shutter speed Mechanical shutter From
1/8000 to 60 seconds from
0 to 30 minutes in Bulb mode Electronic curtain shutter
front from
1/2000 to 60 seconds from
0 to 30 minutes
Electronic shutter from
1/8000 to 60 seconds from
0 to 60 seconds in Bulb Da mode
1/16000 to 1/25 seconds in movie mode
Metering Method Center Weighted Average, Highlight Weighted, Multizone, Multiple, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure compensation -5 to +5 EV (1/3 EV steps)
Metering range 0 to 18 EV
White Balance Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set
Continuous shooting Mechanical shutter
Up to 7fps at 24.2MP for up to 24 frames (Raw) / 999 frames (JPEG)
Electronic shutter
Up to 7fps at 24.2MP for up to 24 frames (Raw) / 999 frames (JPEG)
Up to 30fps at 18MP
Up to 60 fps at 8 MP
Up to 30 fps at 8 MP
Interval recording yes
Self-timer Delay of 2/10 seconds
video
H.264 / MOV 4: 2: 2 recording mode
10-bit 4K UHD (3840 x 2160) at 23.976p / 25p / 29.97p [150 Mb / s]
Full HD (1920 x 1080) at 23.976p / 25p / 29.97p / 50p / 59.94p [100 Mb / s]
4K anamorphic (3328 x 2496) at 23.976p / 25p / 29.97p [150 Mb / s]
H.264 / MOV 4: 2: 0 8 bit
4K UHD (3840 x 2160) at 23.976p / 25p / 29.97p / 50p / 59.94p [100 to 150 Mb / s]
Full HD (1920 x 1080) at 23.976p / 25p / 29.97p / 50p / 59.94p [100 Mb / s]
4K Anamorphic (3328 x 2496) at 23.976p / 25p / 29.97p / 50p [100 to 150 Mb / s]
H.265 / MOV 4: 2: 0
10-bit 4K UHD (3840 x 2160) at 50p / 59.94p [200 Mb / s]
4K anamorphic (3328 x 2496) at 50p [200 Mb / s]
H.265 / MP4 4: 2: 0
UHD 10-bit 4K (3840 x 2160) at 23.976p / 25p / 29.97p / 50p / 59.94p [72 to 100 Mb / s]
H.264 / MP4 4: 2: 0 8 bit
4K UHD (3840 x 2160) at 23.976p / 25p / 29.97p [100 Mb / s]
Full HD (1920 x 1080) at 23.976p / 25p / 29.97p / 50p / 59.94p / 100p / 119.88p / 180p [20 at 28 Mb / s]
External recording modes 4: 2: 2
10-bit 4K UHD (3840 x 2160) up to 50p / 59.94p
Recording limit Up to 30 minutes for UHD 4K (3840 x 2160) at 23.976p / 25p / 29.97p (4: 2: 2 10-bit)
Up to 30 minutes for UHD 4K (3840 x 2160) at 50p / 59.94p (4: 2: 0 10-bit)
Unlimited for UHD 4K (3840 x 2160) at 23.976p / 25p / 29.97p (4: 2: 0 8 bit)
NTSC / PAL video encoding
Audio recording Built-in microphone (stereo)
External microphone input
AAC audio file format, linear PCM
Focus
Focus type Auto and manual focus
Focus Mode Continuous Servo AF (C), Manual Focus (M), Single Servo AF (S)
Autofocus points Contrast detection: 225
Autofocus sensitivity -6 to +20 EV
Viewfinder and monitor
Viewfinder type Electronic (OLED)
Viewfinder resolution 2,360,000 dots
20 mm Eye Point viewfinder
Viewfinder coverage 100%
Viewfinder magnification Approx. 0.74x
Diopter adjustment -4 to +4
Monitor size 3 "
Monitor resolution 1,840,000 dots
Type of articulated touchscreen LCD monitor
Rapid
Built-in flash No
Flash Modes Auto, Auto / Red-eye reduction, Forced activation, Forced activation / Red-eye reduction, Off, Slow synchronization, Slow synchronization / Red-eye reduction
Maximum synchronization speed 1/250 of a second
Flash compensation -3 to +3 EV (1/3 EV increments)
Dedicated TTL Flash System
External flash connection Hot shoe
Interface

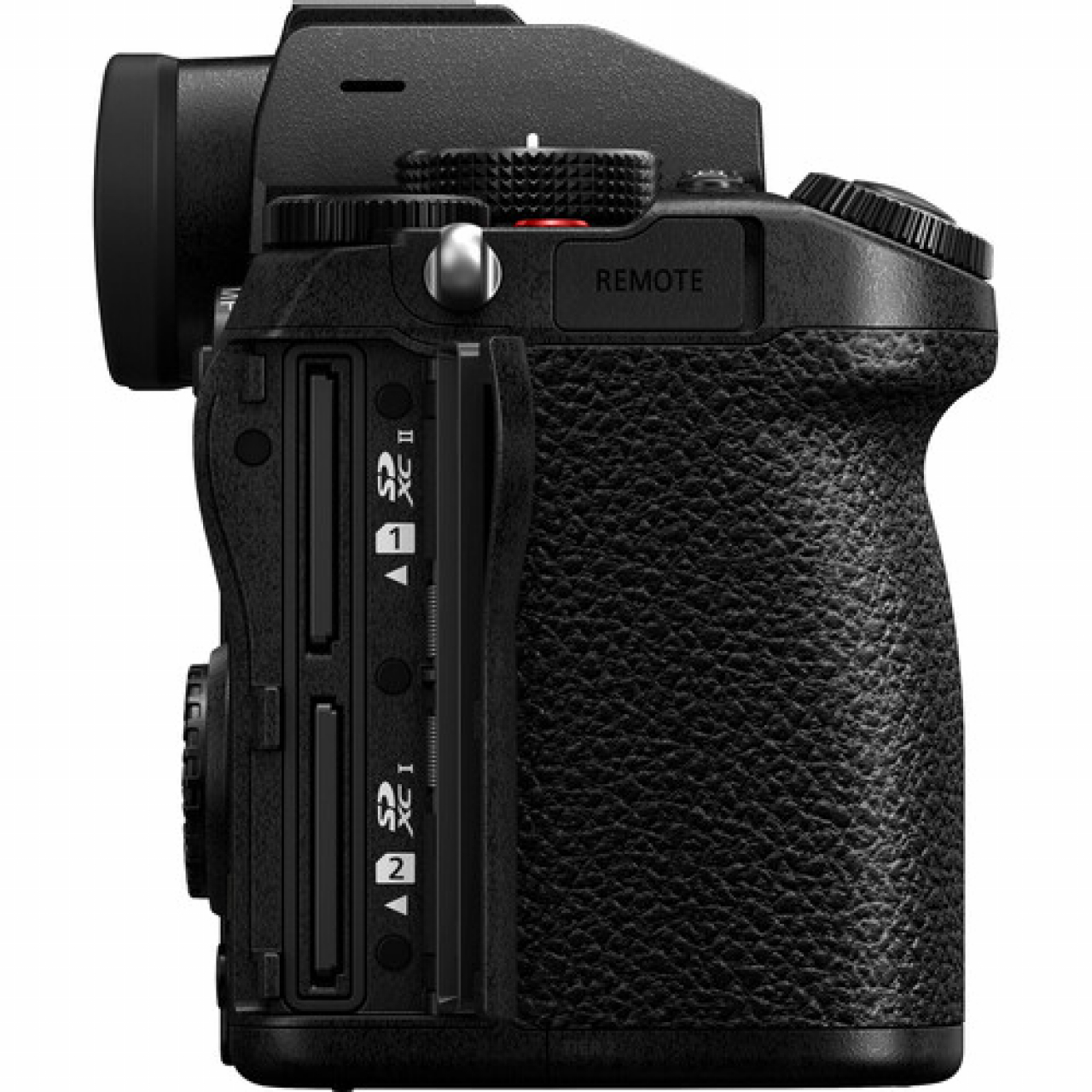

Memory card slot Slot 1: SD / SDHC / SDXC (UHS-II)
Slot 2: SD / SDHC / SDXC (UHS-I)

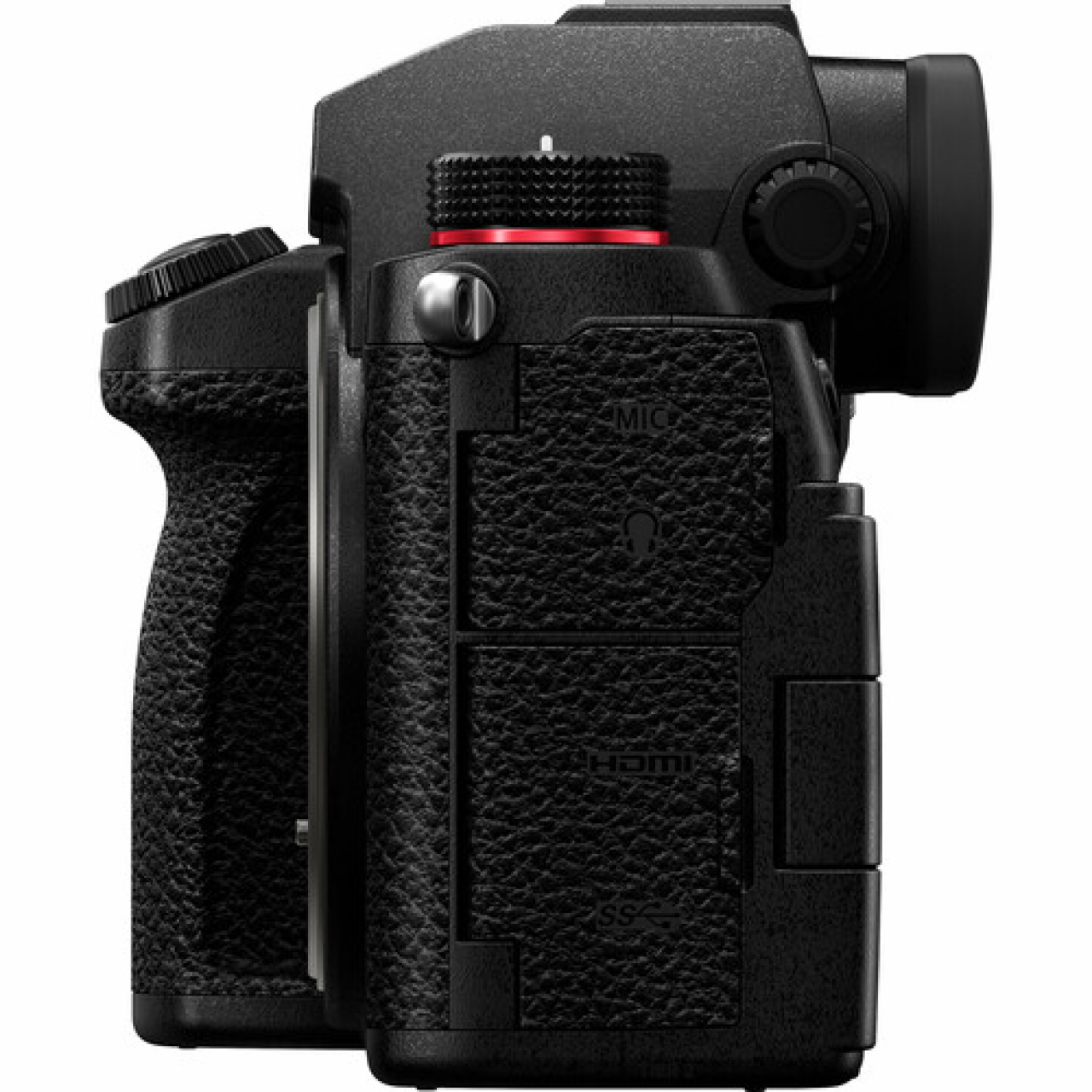

Connectivity USB Type-C (USB 3.1), HDMI D (micro), 3.5mm Microphone, 3.5mm Headphone, 2.5mm Sub-Mini
wireless
Bluetooth Wi-Fi
GPS No
Environmental
operating temperature 32 to 104 ° F / 0 to 40 ° C
Operating humidity 10 to 80%
Physicist
1 x DMW-BLK22 rechargeable Li-ion battery, 2200V DC, 7.2mAh (approx.440 shots)
Dimensions (W x H x D) 132.6 x 97.1 x 81.9mm / 5.22 x 3.82 x 3.22in
Weight 1.57 lb / 714g (body with battery and memory)
1.39 lb / 630 g (body only)
Lens Kit
Focal length 20 to 60 mm
Maximum aperture from f / 3.5 to 5.6
Minimum aperture f / 22
Viewpoint From 94 ° to 40 °
Maximum magnification 0.43x
Minimum focusing distance 5.91 "/ 15 cm
Optical design 11 elements in 9 groups
9 diaphragm blades, rounded
Focus type Autofocus
Image stabilization No.
Filter size 67 mm (front)
Dimensions (ø x L) 3.05 x 3.43 inches / 77.4 x 87.2 mm
Weight 12.35 o
